Helix Pro
Helix Pro is our flagship unibody hyperbaric chamber — delivered fully assembled, calibrated, and ready to commission. Pressurization from 1.1 to 2.0 ATA with 93% medical-grade oxygen delivery at 10 L/min, all housed in a stainless-steel pressure vessel finished to luxury-appliance standards.
Prefer to talk first? Call 1-855-679-4268 or email clinicalhyperbaric@gmail.com for a private consult.
What you actually get.
Unibody construction
Single welded stainless-steel pressure vessel — no field assembly, no seam-by-seam pressure decay, no surprises at commissioning.
Medical-device-grade core
1.1–2.0 ATA operating range, 93 ± 3% oxygen concentration, 10 L/min sustained flow, dual pressure-relief valves, and 150% pressure-redundancy on the vessel itself.
Whisper-quiet at depth
Under 50 dB at full operating pressure. Suitable for spa rooms, executive offices, and high-end residential installs without acoustic isolation.
Premium occupant experience

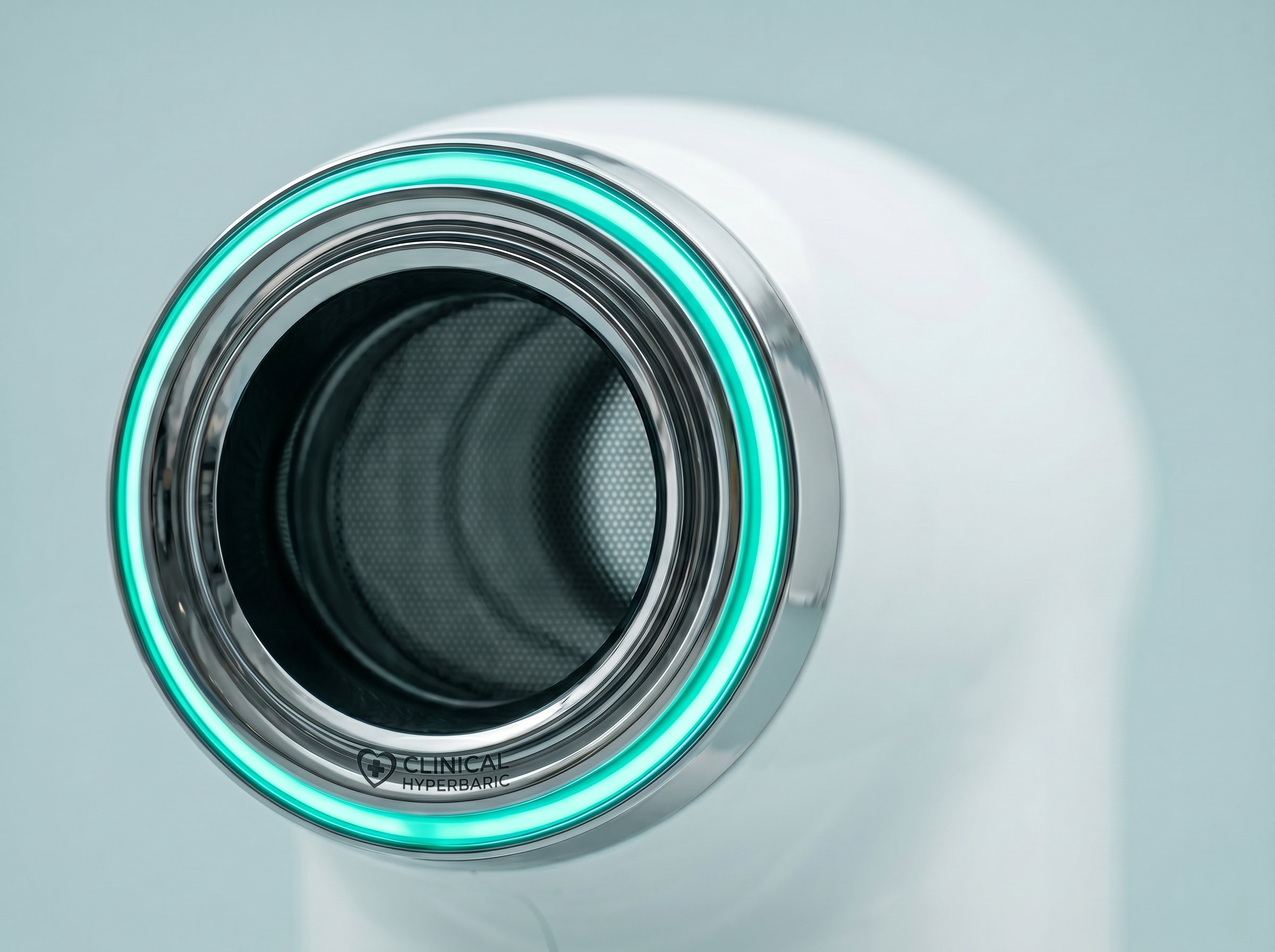

Stainless-steel interior, ambient lighting, integrated comms, and a 15 mm reinforced hatch with smart safety interlocks.
White-glove install
Configured, crated, and delivered to your facility with our installation partner. We coordinate freight, rigging, electrical signoff, and first-pressure commissioning.
Helix Pro — engineering detail.
All specs reported in imperial and metric. Final figures confirmed on the spec sheet at install.
| Format | Unibody — fully assembled |
|---|---|
| Operating pressure | 1.1–2.0 ATA (16.2–29.4 psi / 111.5–202.7 kPa) |
| Pressure-vessel rating | Tested to 150% of max operating pressure |
| Oxygen concentration | 93 ± 3% medical-grade |
| Oxygen flow | 10 L/min (2.64 gal/min) |
| Sound level | < 50 dB at full operating pressure |
| Chamber weight | 2,028 lb (920 kg) |
| Footprint | 84.2 × 51.2 × 73.4 in (2138 × 1300 × 1865 mm) |
| Construction | Stainless steel pressure vessel · 15 mm reinforced hatch |
| Safety | Dual pressure-relief valves · smart hatch interlocks · emergency-vent control |
| Power | 220–240 V AC, dedicated circuit (electrical signoff included in install) |
| Certifications | Manufactured to medical-device-grade quality standards · CE-marked components |
Everything you need to commission.
- Helix Pro unibody hyperbaric chamber
- Integrated oxygen concentrator and flow control
- Touchscreen operator console with session presets
- 15 mm reinforced hatch with smart safety interlocks
- Dual pressure-relief safety system
- Operator and occupant comms
- White-glove install coordination (freight, rigging, commissioning)
- Helix Pro Owner Manual (PDF)
- Founders Bundle: priority service, training, and lifetime firmware updates
Where Helix Pro fits.
Wellness centers, executive recovery suites, premium spa installations, longevity clinics, and high-end residential wellness rooms where a fully assembled, commission-ready chamber is preferred over a modular build.
Clinical Hyperbaric sells the Helix Series as wellness equipment. We do not market it as a medical device, and we do not bill insurance. The CPT reference below is provided so practitioners can map their own treatment language inside their own scope of practice — it is not a claim of reimbursability and not medical advice.
CPT reference (informational only): 99183 — physician attendance and supervision of hyperbaric oxygen therapy, per session. Reimbursability is determined by payer, jurisdiction, and credentialing — not by us.

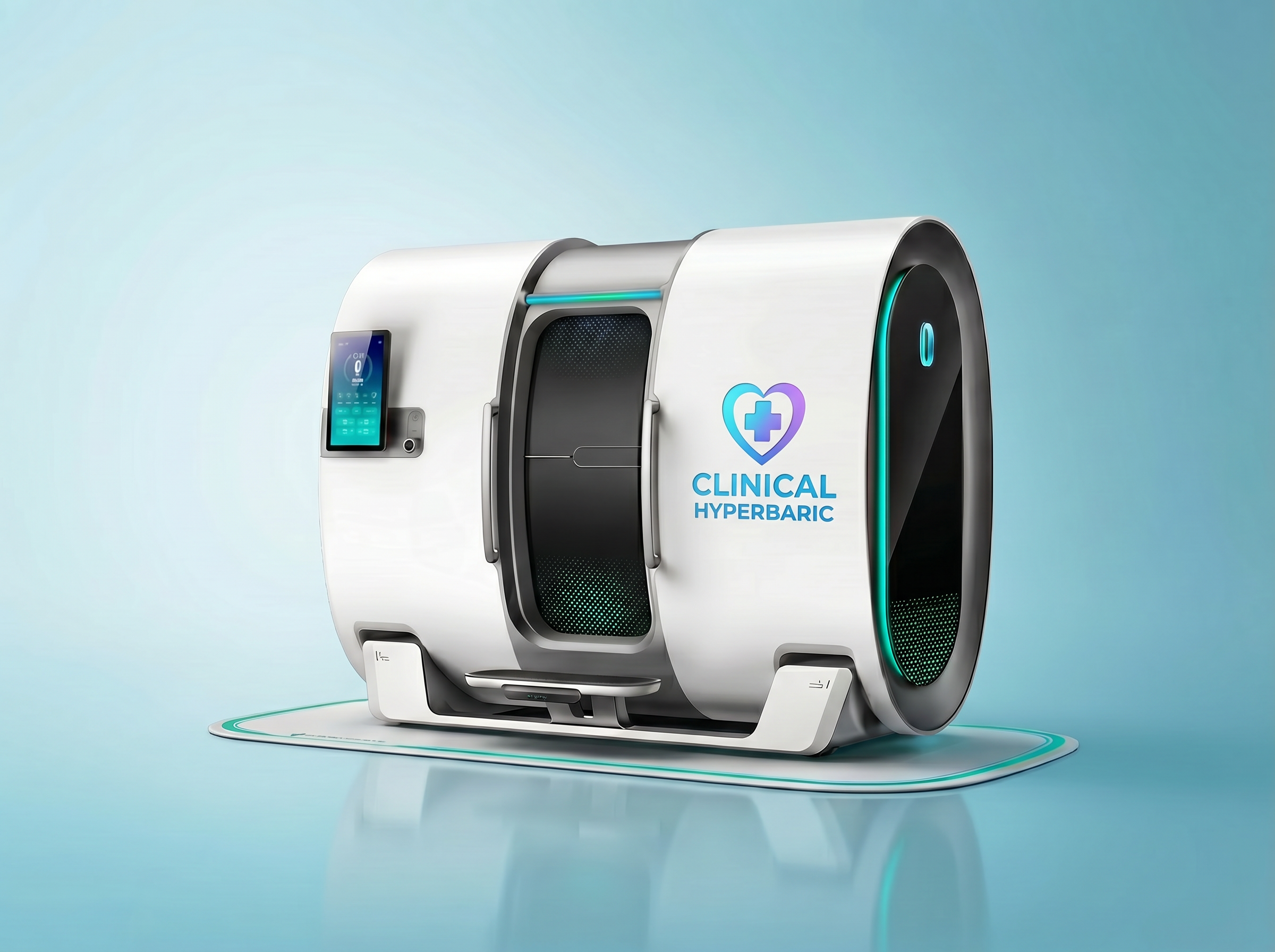

Helix Pro in context.
Renders shown. Final finish and lighting are confirmed at pre-install walkthrough.
Owner manual & technical files.
Full owner documentation is published below. We’ll also ship a printed copy with every unit.
Manual hosted on Shopify CDN · approximately 12 MB
Ready to bring Helix Pro into your facility?
Order now to lock in Founders Bundle pricing, priority install scheduling, and lifetime firmware updates. We’ll walk your floor plan, electrical, and ventilation before anything ships.
